Chapter 11: Design a News Feed System ​

Introduction ​

A news feed system displays a constantly updating list of posts (status updates, photos, videos, and links) from a user’s connections. Examples include Facebook’s news feed, Instagram’s feed, and Twitter’s timeline. This chapter explores the design of a scalable news feed system.

Step 1: Understanding the Problem ​

Requirements ​

  1. Platform: The system supports both web and mobile apps.
  2. Features:
    • Users can publish posts.
    • Users can view posts from friends in their news feed.
  3. Sorting: Feeds are sorted in reverse chronological order for simplicity.
  4. Scale:
    • Users can have up to 5,000 friends.
    • 10 million daily active users (DAU).
    • Feeds may include text, images, and videos.

Step 2: High-Level Design ​

Overview ​

The design includes two main flows:

  1. Feed Publishing: A user publishes a post, which is written to the database and propagated to their friends’ feeds.
  2. News Feed Building: A user retrieves their news feed by aggregating posts from friends in reverse chronological order.

News Feed APIs ​

  1. Feed Publishing API:

    • Endpoint: POST /v1/me/feed
    • Params: content (post text) and auth_token (authentication).

  2. News Feed Retrieval API:

    • Endpoint: GET /v1/me/feed
    • Params: auth_token (authentication).

Feed Publishing ​

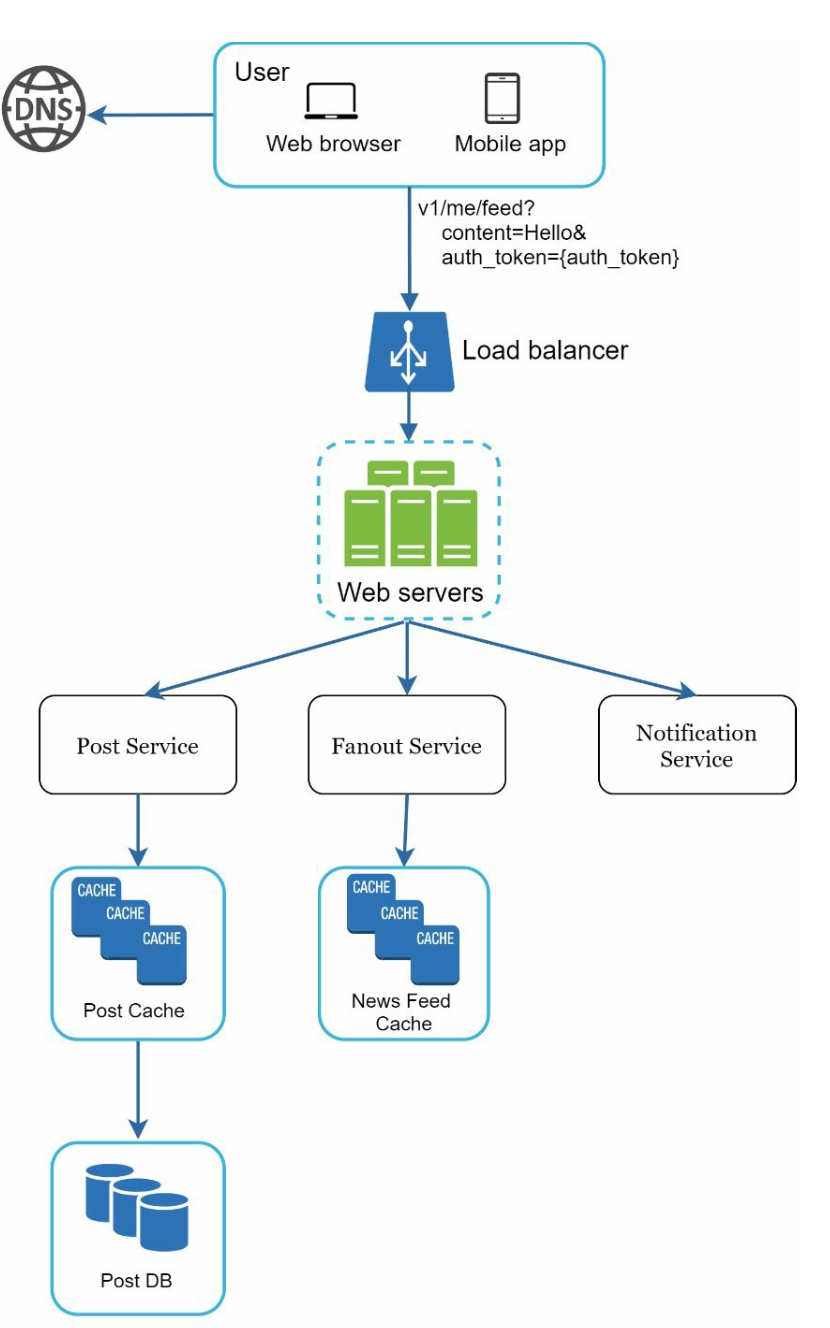

Feed Publishing

  1. User Interaction: The user publishes a post via the feed publishing API.
  2. Load Balancer: Distributes traffic to web servers.
  3. Web Servers: Authenticate requests and redirect to services.
  4. Post Service: Stores the post in the database and cache.
  5. Fanout Service: Propagates the post to friends’ news feeds in the cache.
  6. Notification Service: Sends notifications to friends.

News Feed Building ​

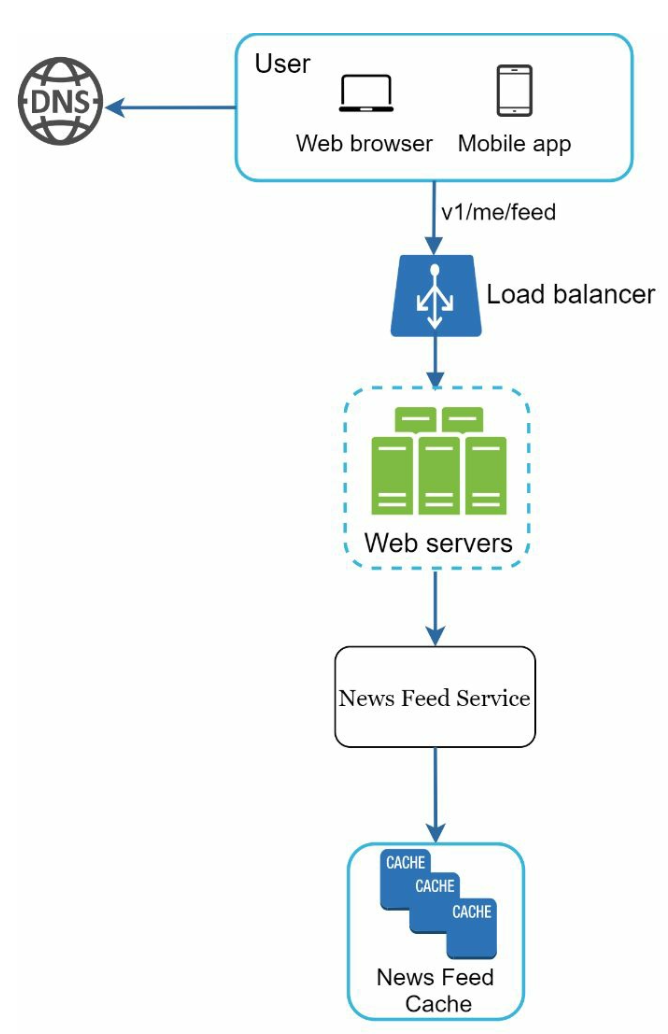

News Feed Building

  1. User Interaction: The user requests their news feed via the retrieval API.
  2. Load Balancer: Distributes traffic to web servers.
  3. Web Servers: Forward requests to the news feed service.
  4. News Feed Service: Fetches post IDs from the news feed cache and retrieves complete post details from the database or cache.

Step 3: Design Deep Dive ​

Feed Publishing Deep Dive ​

  1. Web Servers:

    • Authenticate users using auth_token.
    • Enforce rate limits to prevent spam.

  2. Fanout Service:

    • Fanout on Write: Push posts to friends’ feeds at write time.

      • Pros: Real-time updates, fast feed retrieval.
      • Cons: Resource-intensive for users with many friends.

    • Fanout on Read: Pull posts at read time.

      • Pros: Efficient for inactive users.
      • Cons: Slower feed retrieval.

    • Hybrid Approach: Use a push model for most users and a pull model for high-connection users (e.g., celebrities).

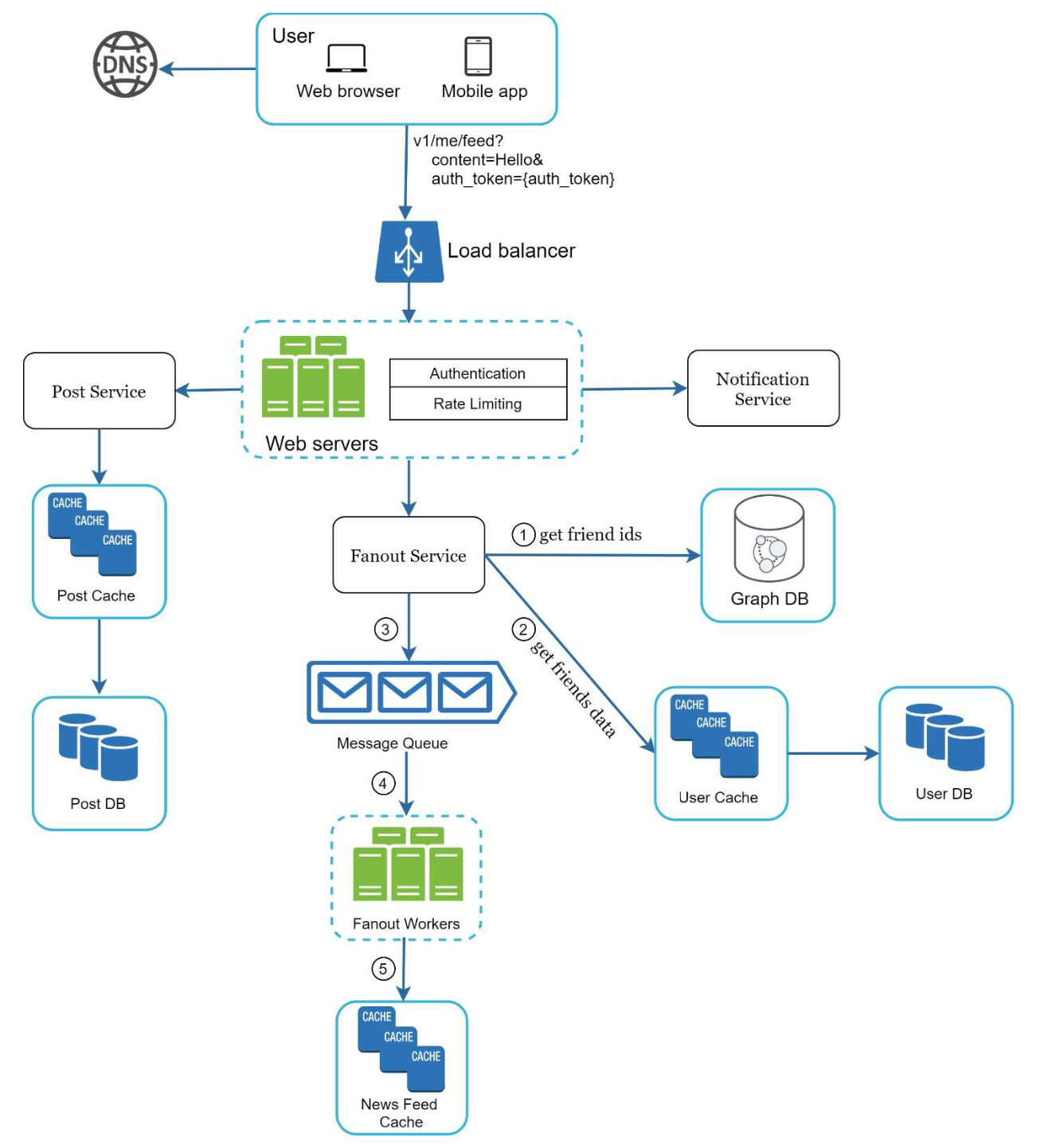

      Feed Publishing Deep Dive

    The fanout service works as following:

    1. Fetch Friend IDs: Retrieve the friend list from a graph database.

    2. Filter Friends from Cache: Access user settings in the cache to exclude certain friends (e.g., muted friends or selective sharing preferences).

    3. Send to Message Queue: Send the filtered friend list along with the new post ID to a message queue for processing.

    4. Fanout Workers: Workers retrieve data from the message queue and update the news feed cache. The cache stores <post_id, user_id> mappings instead of full user and post objects to save memory.

    5. Store in News Feed Cache: Append new post IDs to the friends’ news feed cache. A configurable limit ensures that only recent posts are stored, as most users focus on the latest content, keeping cache memory consumption manageable.

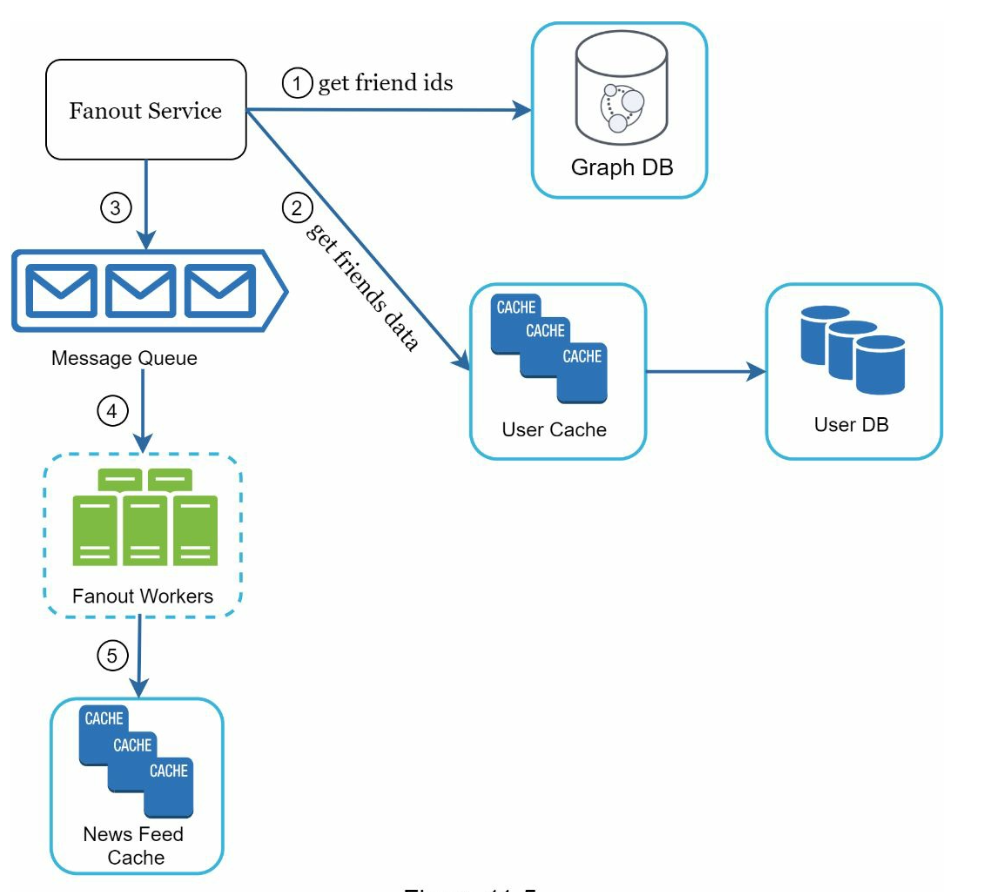

      Fanout Service

News Feed Retrieval Deep Dive ​

Cache Architecture ​

The cache is divided into five layers:

  1. News Feed Cache: Stores post IDs for quick retrieval.

  2. Content Cache: Stores post details (popular posts in hot cache).

  3. Social Graph Cache: Stores user relationship data.

  4. Action Cache: Tracks user actions (likes, replies, shares).

  5. Counter Cache: Maintains counts for likes, replies, followers, etc.

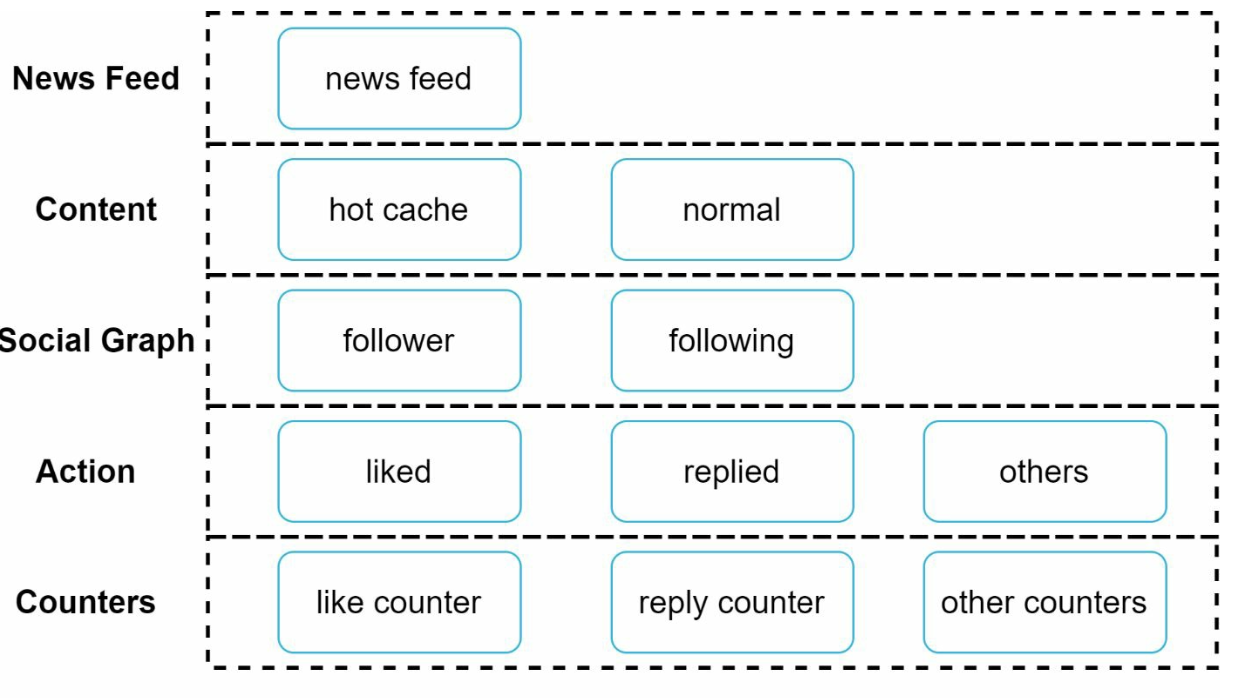

    Cache Architecture

Key Optimizations ​

Scaling ​

  1. Database Scaling:
    • Horizontal scaling and sharding.
    • Use of read replicas for high-traffic queries.
  2. Stateless Web Tier: Keep web servers stateless to enable horizontal scaling.

Caching ​

  1. Store frequently accessed data in memory.
  2. Use cache layers to reduce latency and database load.

Reliability ​

  1. Consistent Hashing: Distribute requests evenly across servers.
  2. Message Queues: Decouple system components and buffer traffic.

Monitoring ​

  1. Track key metrics like QPS (queries per second) and latency.
  2. Monitor cache hit rates and adjust configurations accordingly.
